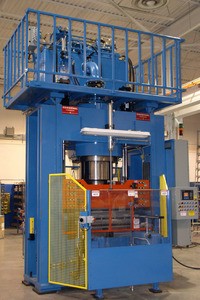

650 Ton Positive Mold Press
This 650-METRIC TON CURE PRESS is designed to produce high quality brake parts with maximum efficiency. The machine is equipped with several safety gates and switches to ensure maximum operator safety.
Standard Features
The machine is equipped with manual and automatic programs. The programs are designed to provide maximum flexibility to the customer. The customer can input/modify various parameters for the manufacturing process of brake parts on this machine, using the display screen on the operator’s panel. |
Options
- Electrical Plug, DIN rail mounted inside panel
- Voltage mains level
- Oil Low Level Switch
- Current Monitor
- Prefill hydraulic system
- Water valve for heat exchanger
- Different operator panel models
- Equipped with a press gate to minimize heat loss during pressing operation
- Press safety gate
- Dual palm button operation
- Hydraulic power unit on top of press to minimize floor print area
|
Specifications
|
GENERAL
|
|
MACHINE DIMENSIONS (L x W x H)
|
133” x 133” x 183”
|
|
PRESS TONNAGE
|
650 METRIC TON (717 TON) MAXIMUM
|
|
MAIN RAM BORE
|
26”
|
|
JACK CYLINDER DIAMETER
|
6”
|
|
DAYLIGHT NUMBER OF
|
1
|
|
POWER AND CONTROL
|
|
POWER REQUIREMENTS
|
480V/3PH/60Hz
25HP/70AMP
SYSTEM CONNECTION 5KA MAX. 100A DISCONNECT
FUSE MAIN AT 100A TIME DELAY
|
|
HORSEPOWER (TOTAL)
|
25HP
|
|
HIGH PRESSURE PUMPS
HIGH VOLUME PUMP
|
2450 PSI
700 PSI
|
|
RESERVOIR CAPACITY
|
275 GALLONS
|
|
TYPE OF HYDRAULIC OIL
|
AW 46
|
|
COOLING REQUIREMENT
|
WATER @ 2 GAL/MIN @ MAX. 85 DEGREES FAHRENHEIT. ADJUST FLOW RATE ACCORDINGLY WITH RISE IN TEMPERATURE.
|
|
INTERNAL CONTROLLER
|
ALLEN BRADLEY SLC 505
120VAC OUT
|
|
PLC INTERFACE
|
AB PANELVIEW 600
|
|
|
|
