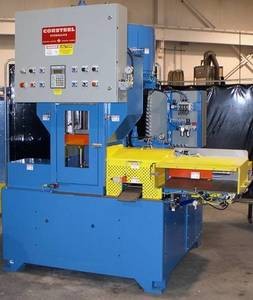

This 75 Ton Preformer is a four-post down-acting press designed specifically to pre-shape loose material into an accurate weight/easily handled "preform" creating less dust and material separation than conventional models.
Standard Features
This system is designed to work automatically without supervision with the exception of an operator periodically removing the stacked preforms. This operation can also be performed by means of a conveyor system.
Options
- HOPPER ACCESS DOOR & INSPECTION WINDOWS - ELECTRICAL PLUG INSIDE PANEL - WATER VALVE
- FRONT LOAD QUICK CHANGE
- ALLEN BRADLEY PANELVIEW 550 WITH IMPROVED DISPLAY PROGRAM - MAIN POWER PANEL LOCATION AS PER CUSTOMER’S REQUEST - INTEGRATED HYDRAULIC POWER UNIT FOR MINIMAL FLOOR PRINT AREA
Specifications
GENERAL
MACHINE DIMENSIONS (APPROX.) (W x D x H)
87” x 78" x 96"
WEIGHT (APPROX.)
8000 LBS. (TANK EMPTY)
DAYLIGHT
1
DAYLIGHT CLEARANCE
24"
BED AREA
18 1/2" x 18 1/2"
CLEARANCE BETWEEN POSTS
10 1/2 x 10 1/2"
MOLD MOUNTING PATTERN
7" L TO R
8" F TO B
WORKING AREA UNDER MOLD
8" X 8"
CYLINDER BORE
8"
STROKE
12"
CYLINDER SPEEDS
DOWN ON REGEN 400 IPM
PRESSING 20 IPM
RETURN 525 IPM
SCALE WEIGHT TOLERANCES
+/- 2.0 GRAMS (DEPENDING
ON MATERIAL)
HOPPER CAPACITY
8,000 CU.IN.
WEIGHING CAPACITY
500 GRAMS
MAXIMUM PRESSURE
3000 PSI (HIGH PRESSURE)
350 PSI (HIGH VOLUME)
RESERVOIR CAPACITY
200 US GALLONS
PRESS TONNAGE
VARIABLE 13 TO 75 TON
AIR REQUIREMENTS
80 PSI AT 2 FT. / MIN.
(DRY AIR)
WATER COOLER
8 GAL. / MIN. (MINIMUM)
@ 85 DEGREES F. ADJUST
FLOW RATE WITH RISE IN
TEMPERATURE.
POWER AND CONTROL
POWER REQUIREMENTS
575VAC/3PH/60Hz/35ATD
SYSTEM CONNECTION 5KA MAX
HORSEPOWER
15 HP MAIN MOTOR
TOTAL 17 HP
INTERNAL CONTROLLER
ALLEN BRADLEY SLC 504
CYCLE TIME
8 - 15 SECONDS (DEPENDING ON # OF BUMPS AND WEIGHT REQUIRED)
