The OD grinders are set up to grind the outside diameter of the brake block.  There are two OD grinders. The first unit is the ROUGH grinder. It is used to remove the majority of the excess brake material. The second unit is the FINE grinder. It is used to produce the tight tolerance finished product. Fundamentally both units operate in the same manner. The OD grinder has the ability to grind eccentric as well as parallel blocks on a common fixture. A servo drive system allows the cutters to precisely follow the position of the feed drum to create the desired block dimensions. The block dimensions are entered at the display screen. A RECIPE system has been included to minimize the settings required by the operator.

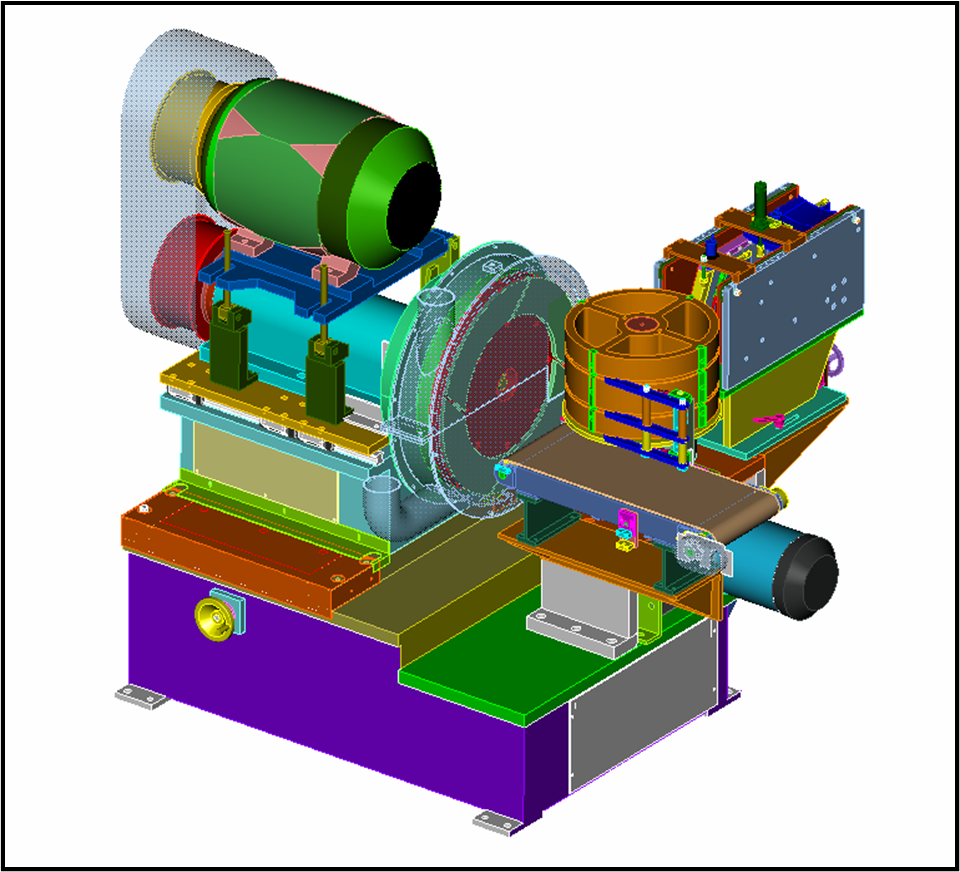

OD GRINDER UNIVERSAL FIXTURE WITH SERVOMOTOR

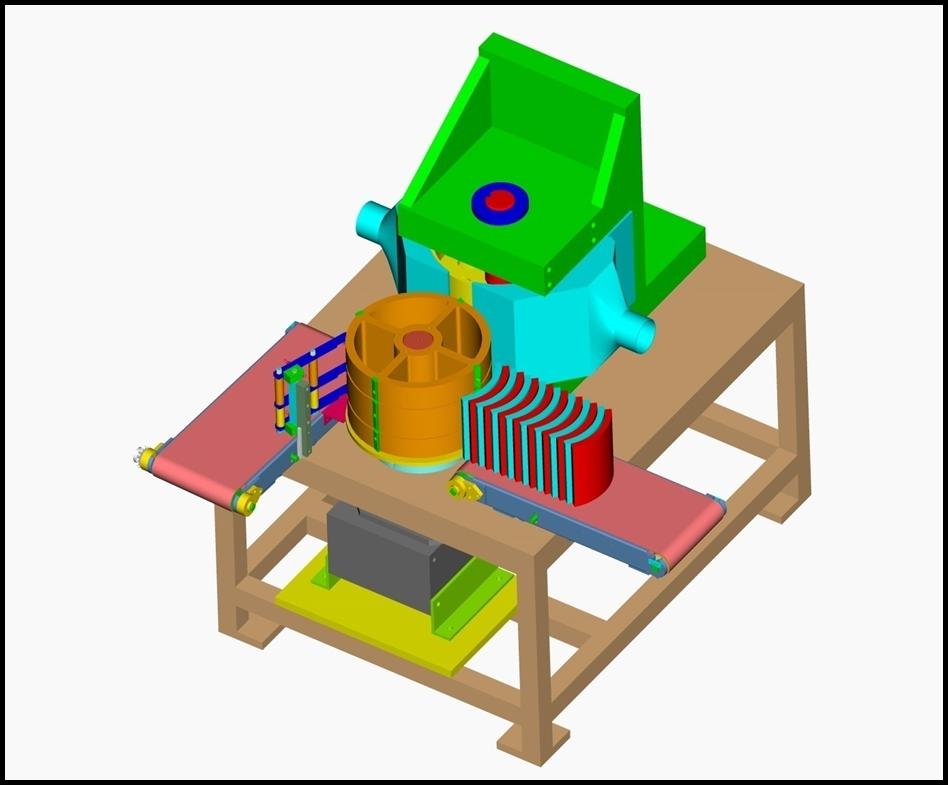

OD-GRINDER STANDARD
